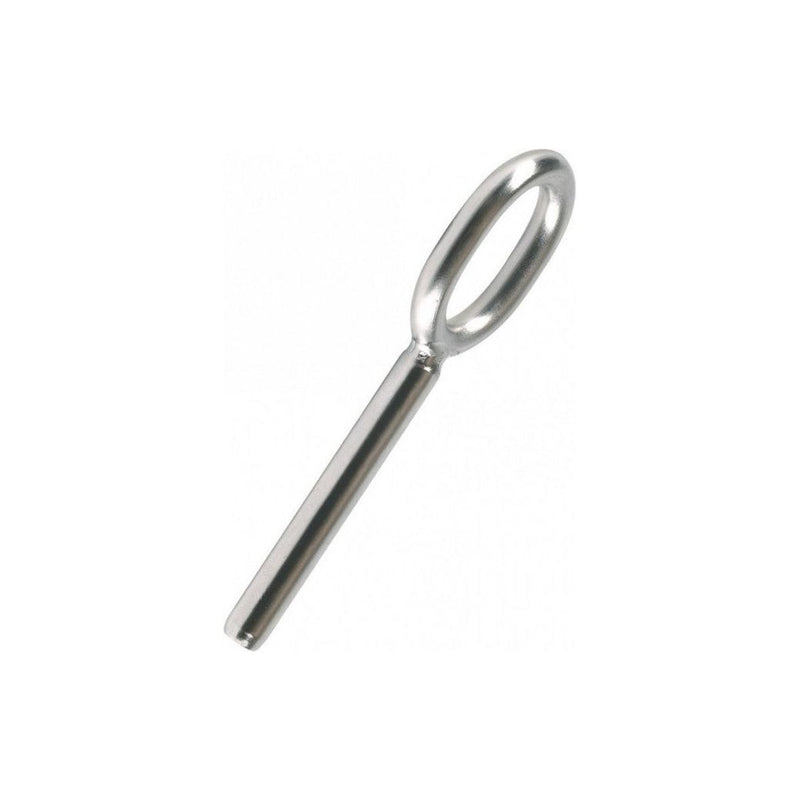

Swage End Fitting with Large Eye. This swage end fitting or terminal is swaged at one end, and has a large eye made of marine-grade AISI 316 stainless steel at the other end.
Inspired by the thimble shape, we have developed this new swage fitting shape for use in dinghy sailing for trapeze upper end, dinghy forestay, etc... This fitting will replace traditional crimped thimbles for better strength and aesthetics!

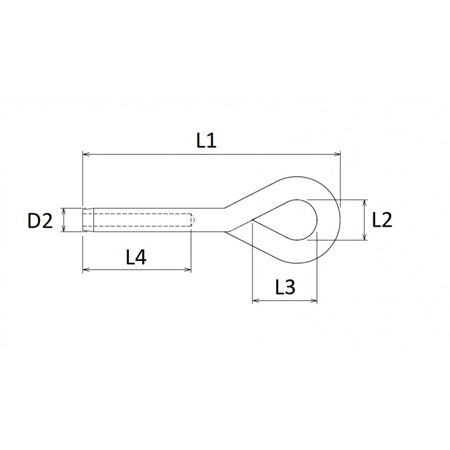

| Cable diameter | Length L1 | Width L2 | Theoretical strength |
| ø2.5mm | 73mm | 13mm | 800kg |
| ø3mm | 76mm | 13mm | 1250kg |
| ø4mm | 95mm | 13mm | 2180kg |
